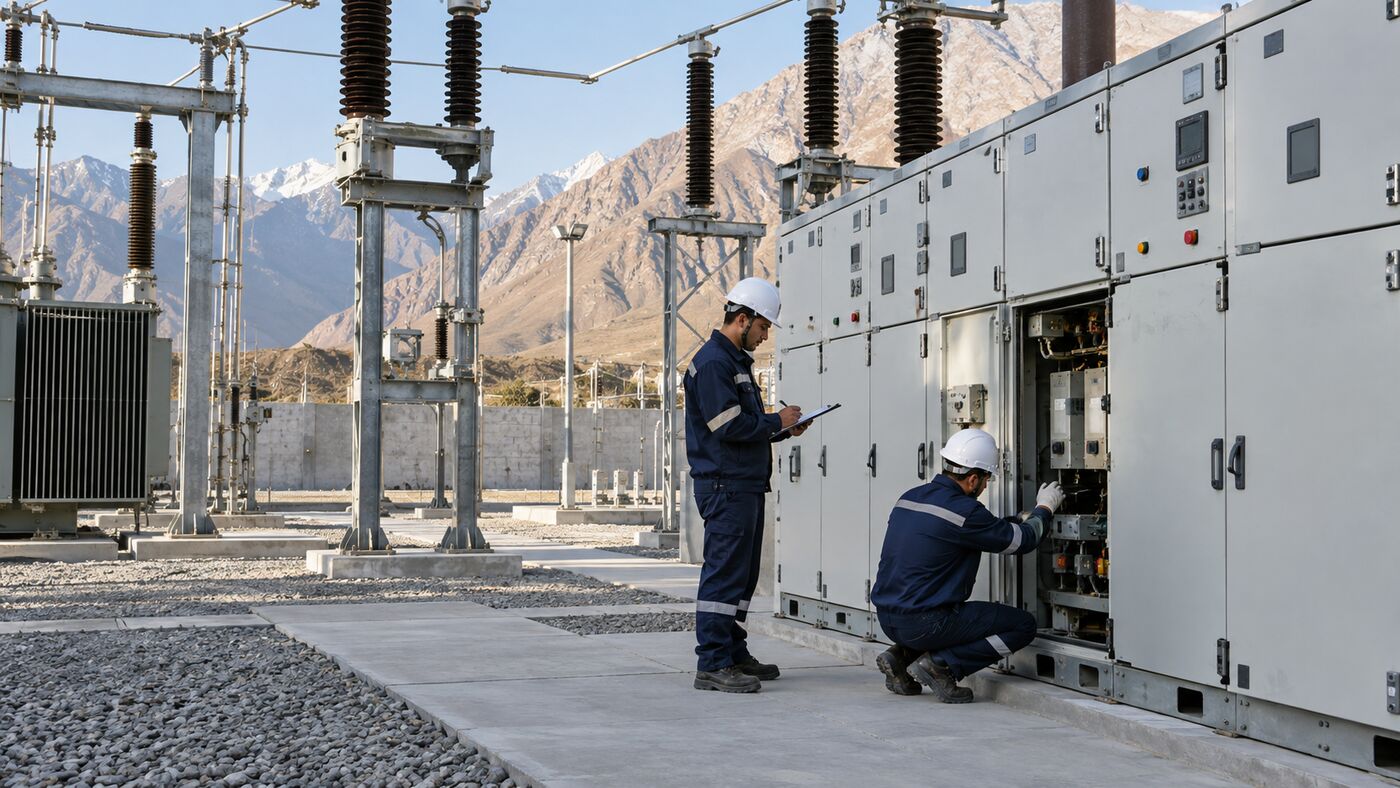

Medium-Voltage Switchgear Safety

PRACTICAL GUIDE

Project context

Design considerations for safer and more maintainable MV systems. For projects in Afghanistan, early definition of operating conditions, site access, utilities, local skills and maintenance capability helps prevent avoidable procurement changes.

Planning and specification

Arc classification, interlocking, protection settings, earthing, cable access and routine-test documentation should be specified. Requirements should be recorded in a clear datasheet and linked to applicable standards, inspection stages, documentation, delivery conditions and acceptance criteria.

Typical equipment and supply scope

Metal-clad switchgear, vacuum breakers, protection relays, busbars, earthing switches and test accessories. The final package should also consider commissioning materials, recommended spares, special tools, training, warranty support and export packing suitable for the complete transport route.

Procurement approach

Comparable bids require one consistent technical scope. Supplier deviations should be listed separately, while drawings, certificates, test reports, country of origin, delivery schedule and after-sales support are evaluated before award.
