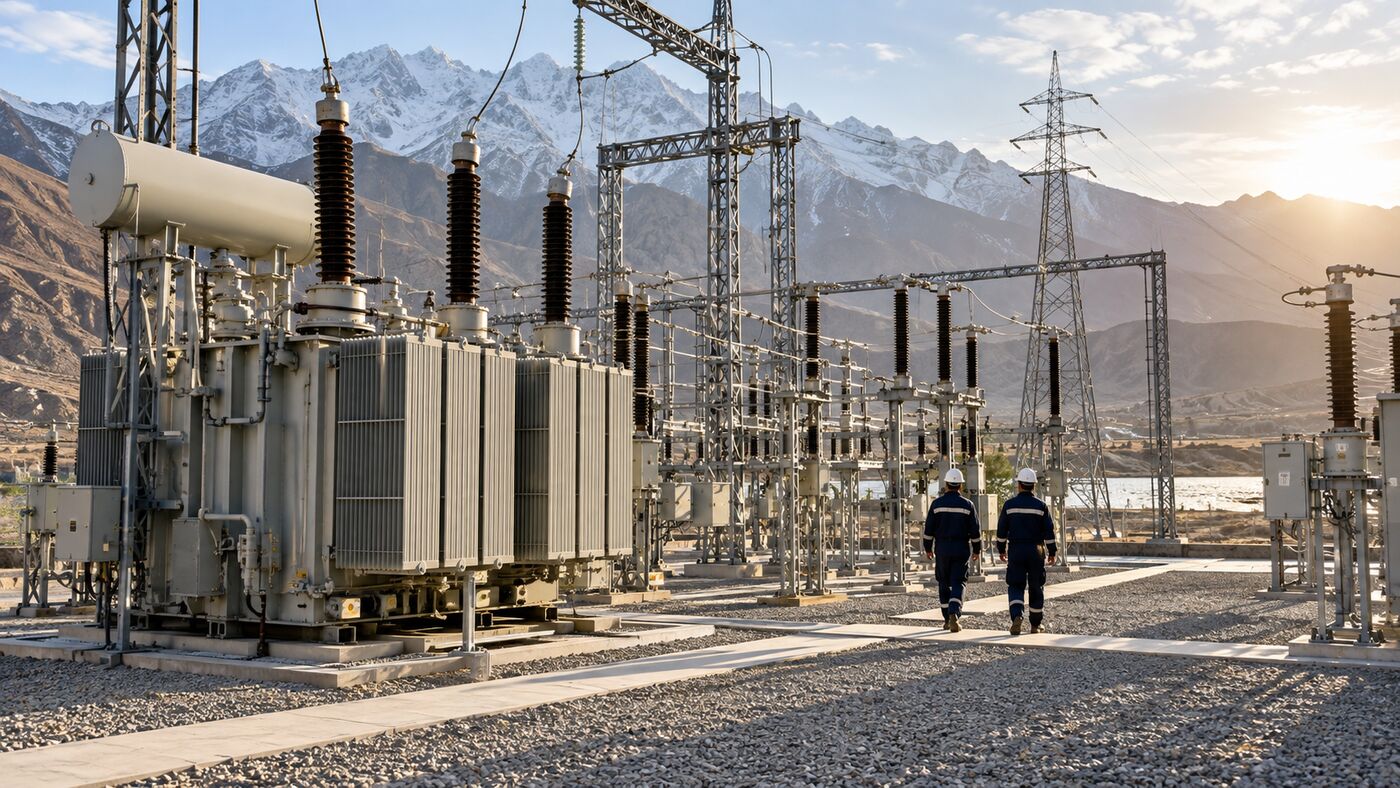

Substation Equipment Guide

PRACTICAL GUIDE

Project context

Core equipment packages for reliable medium- and high-voltage substations. For projects in Afghanistan, early definition of operating conditions, site access, utilities, local skills and maintenance capability helps prevent avoidable procurement changes.

Planning and specification

System voltage, fault level, insulation coordination, climate, altitude and grid-protection requirements drive technical selection. Requirements should be recorded in a clear datasheet and linked to applicable standards, inspection stages, documentation, delivery conditions and acceptance criteria.

Typical equipment and supply scope

Power transformers, switchgear, breakers, disconnectors, CTs, VTs, surge arresters, relays and control panels. The final package should also consider commissioning materials, recommended spares, special tools, training, warranty support and export packing suitable for the complete transport route.

Procurement approach

Comparable bids require one consistent technical scope. Supplier deviations should be listed separately, while drawings, certificates, test reports, country of origin, delivery schedule and after-sales support are evaluated before award.
